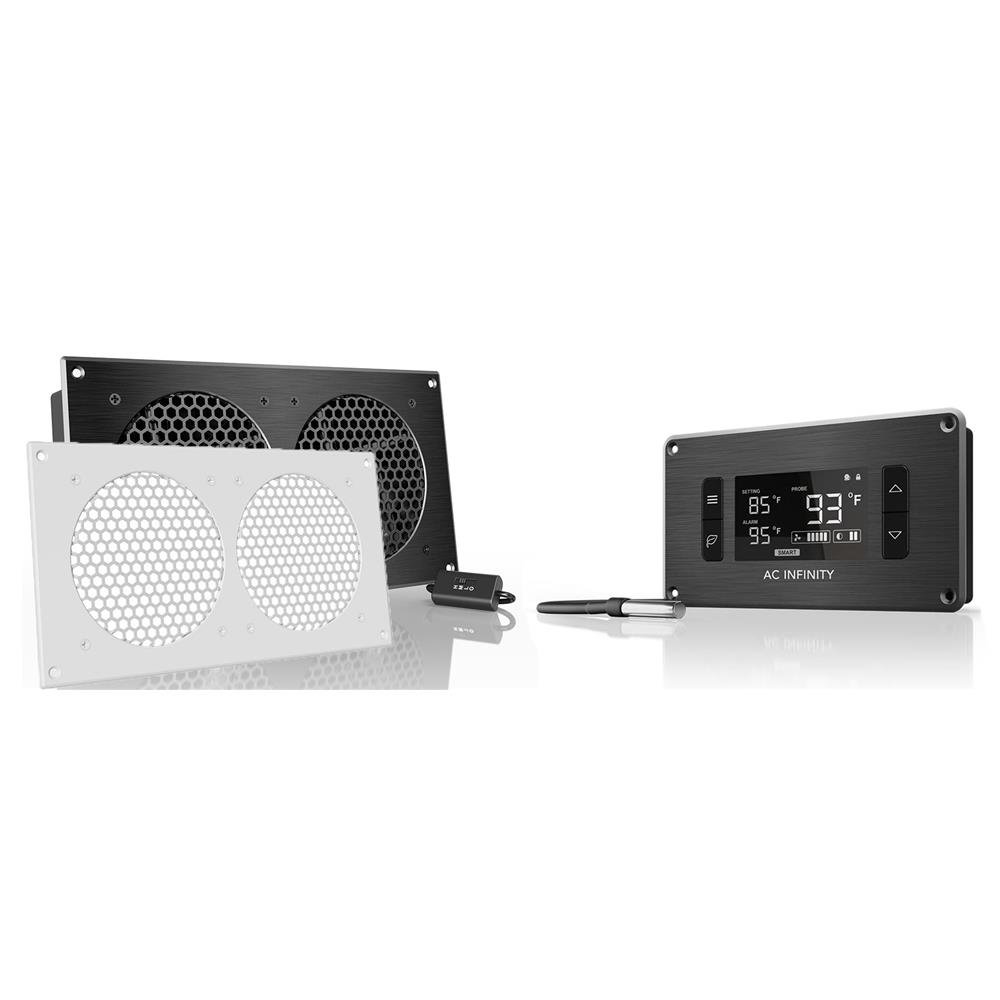

Airplate S7 Kit - 12" Unit, Dual Fan /w LCD Thermal Control - WHT

AIRPLATE S7, HOME THEATER AND AV QUIET CABINET COOLING FAN SYSTEM, 12 INCH

Product Features

• An ultra-quiet fan system designed for cooling cabinets that requires minimal noise.
• Features a multi-speed controller to set the fan’s speed to optimal noise and airflow levels.
• Contains a CNC machined aluminum frame with a modern brushed black finish.
• Includes powerpack
• Dimensions: 11.7 x 6.1 x 1.3 in | Total Airflow: 104 CFM | Total Noise: 26 dBA

Product Description
The ultra-quiet fan system is designed to cool home theaters, entertainment centers, and audio video cabinets. Features a speed controller and 6 foot power cord. Included fans use a custom motor engineered to minimize noise during speed variations and are certified by CE, UL, TUV, and RoHS. Containing dual ball bearings rated at 67,000 hours, the unit can be mounted in any direction. Features a CNC machined aluminum frame with a modern brushed black finish. Fans are set to exhaust air out the frame but this can be reversed to intake air using a screw driver. Includes all necessary hardware to easily mount the unit onto a cabinet and power it through an USB port or standard wall outlet.

Speed Controller and Boost Adapter
The in-line multi-speed controller with power switch allows setting the fan’s speed to optimal noise and airflow levels for various environments. The included Boost Adapter not only allows the fan to be powered through a wall outlet, but increases its performance by up to 25%.

Connecting Additional Units
For cabinets that requires more airflow, each unit can be connected to additional AIRPLATE S and T series cabinet fans. Up to four fans can share the same USB power source; and up to six fans can share the same thermal controller or wall outlet power source. AIRPLATE S3/T3 contains one fan, AIRPLATE S7/T7 contains two fans, and AIRPLATE S9/T9 contains three fans.

Applications
This ultra-quiet cooling system is popular in a variety of applications including home theaters, entertainment centers, and audio video cabinets; and smaller enclosures and racks holding computers, receivers, amplifiers, and other AV equipment.

Technical Data

Product Identification
Manufacturer

• AC Infinity Inc.

Product Name

• AIRPLATE S7

Product Model

• AI-CFD120BA

UPC Code

• 854759004068

Product and Mounting Dimensions - Fan Unit
Total Dimensions

• 11.7 x 6.1 x 1.3 in. (29.7 x 15.5 x 3.3 cm)

Backside Enclosure Dimensions

• 10.04 x 5.31 in. (25.5 x 13.5 cm)

Required Mounting Hole

• 10.12 x 5.35 in. (25.7 x 13.6 cm)

Hole to Hole Distance

• 10.94 x 5.35 in. (27.8 x 13.6 cm)

Screw Hole Size

• Ø 0.197 in. (Ø 0.5 cm)

Cord Length

• 72 in. (6 feet)

Product Performance and Technical Specs
Total Airflow

• 104 CFM

Total Noise

• 26 dBA

Static Pressure

• 1 mm-H2O

Operating Voltage

• 3 to 7V DC

Power

• 2.9 W

Current

• 0.58 A

Wall Adapter Input

• 100 to 240V AC

Operating Humidity

• 35 to 85% RH

Operating Temperature

• 14 to 230°F

Fan Bearings

• Dual Ball

L10 Life Expectency

• 67,000 Hours

Fan Quality Approvals

• UL, CE, TUV, RoHS

AC INFINITY, STANDARD THERMAL FAN CONTROLLER

Product Features

• Digital thermostat and speed controller with back lit LCD display
• Controls up to six AC Infinity Cabinet and USB Fans, see below for compatibility
• Advance functions include fan speed control and smart energy saving mode
• Metal frame features a brushed aluminum finish, mountable onto wall panels and cabinets
• Includes thermal probe, mounting screws, and power wall adapter | Technical Data Tab

Product Description
The AI-ATC standard fan controller is designed to control up to six AC Infinity Cabinet and USB fans. The controller measures 4.25 by 2.75 by 1 inch, and contains a back lit LCD digital display, which can display Fahrenheit or Celsius. Its metal frame features a brushed aluminum finish and can be mounted onto wall panels and cabinets up to 1.25 inches thick. On the back side are two USB ports and a 48 inch thermal probe. Operating temperature can be set between 70 to 110 degrees Fahrenheit. Complete kit includes thermal controller, mounting screws, plastic stencil, instruction manual, and 100-125V AC wall adapter.

Programming
AUTO mode is an easy to use thermostat, just set the temperature you want the fans to turn on. Fans speed can be set in ON mode. Lastly, SMART mode is an energy saving setting which automatically adjusts the fans speed depending on the temperature. Features a four degree variation buffer to prevent fans from turning on and off too quickly.

Compatibility
The thermal controller can power up to six fans from the AC Infinity AIRPLATE S Series and MULTIFAN S Series. Some models contain more than one fan. For example, dual fan systems such as the AIRPLATE S7 or MULTIFAN S5 contain two fans. The controller would only be able to power up to three of these models for a total of six fans. Other 5V USB fans can be compatible but may not be fully functional with the speed control feature.

Technical Data

Product Identification
Manufacturer

• AC Infinity Inc.

Product Name

• Standard Thermal Controller

Product Model

• AI-ATC

UPC Code

• 854759004402

Product and Mounting Dimensions
Total Dimensions

• 4.25 x 2.75 x 1 in (10.7 x 6.8 x 2.5 cm)

Backside Enclosure Dimensions

• 3.23 x 2.17 in (8.2 x 5.5 cm)

Required Mounting Hole

• 3.42 x 2.28 in (8.7 x 5.8 cm)

Hole to Hole Distance

• 3.74 x 2.17 in (9.5 x 5.5 cm)

Screw Hole Size

• Ø 0.119 in (Ø 0.3 cm)

Display Size

• 2.25 x 1.25 in. (4.7 x 3.2 cm)

Cord Length

• 48 in (4 feet)

Thermal Probe Length

• 36 in (3 feet)

Product Performance and Technical Specs
Maximum Fans Controlled

• 6

Max Power Supported

• 10 W

Programming Temperatures

• 70 to 110°F

Operating Voltage

• 3 to 7V DC

Power

• 0.6 W

Current

• 2 A

Wall Adapter Input

• 100 to 240V AC

Operating Humidity

• 35 to 85% RH
